Home > Product Information > Galvanized Steel Wire for ACSR
Untitled Document


1) ACSR is an abbreviation of Aluminum Stranded Conductors Steel Reinforced and stands
    for steel core aluminum strand
2) ACSR is mostly used as processing electric wire or high voltage wire requiring great
    tensile weight.
3) Galvanized Steel Wire strand for ACSR are used as steel core of ACSR.
4) Because aluminum conducts electricity well while having weak intensity, and Galvanized
    Steel Wire strands have high intensity, the one that has stranded by combining
    Galvanized Steel Wire strand and aluminum strands
    (core= Galvanized Steel Wire strand, exterior=aluminum strand) is ACSR.

KS C 3113 Aluminum Stranded Conductors Steel Reinforced
JIS C 3110 Aluminum Stranded Conductors Steel Reinforced
ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors Steel
Reinforced
ASTM B 498 Zinc-Coated(Galvanized) Steel Core Wire For Aluminum
Conductors Steel Reinforced
ASTM B 500 Zinc-Coated And Aluminum-Coated Stranded Steel Core
For A.C.S.R
BS 215 Part 2 Aluminum Conductors And Aluminum Conductors,
Steel Reinforced
BS 4565 Galvanized Steel Wire For Aluminum Conductors,
Steel Reinforced
IEC 209 Aluminum Conductors Steel Reinforced
IEC 888 Zinc-Coated Steel Wires for Stranded Conductors
IEC 1089 Round Wire Concentric Lay Overhead Electrical Stranded
Conductors
AS 1220 Part1 Galvanized steel reinforced (ACSR/GZ)
AS 3607 Conductors - Bare overhead, aluminium and aluminium
alloy - Steel reinforced

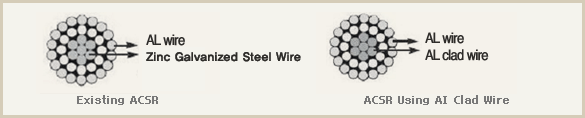

Because the existing ACSR was made so that inner Galvanized Steel Wire Strands would mALntALn their intensity by stranding AL and external AL was made to conduct electricity well. So, an occasional cutting of line had occurred from corrosion of alien substances between zinc and AL.
Because the AS Wire developed as a replacement to improve this has performed aluminum
cladding above hard drawn wires, the snapping of wires is considerably reduced because there is almost no corrosion between the same substances as aluminum and aluminum contact each other (in case of making ACSR by stranding aluminum wire around AS Wire or filament made of AS Wire).
Therefore, the selection of ACSR using AS Wire is being increased at areas of severe pollution and sea areas with a lot of salinity.
The bonding ability while cladding AL wire above AS wire must be excellent.
Because the required tensile strength and elongation must come out when wire is drawn
   after AL Cladding, the tensile strength and elongation must satisfy specification value.
The coiling condition must be satisfactory.
The packaging condition must be satisfactory.
