1) Used for electric power, communication, processing support line, underground support
wire and messenger wire.
2) S-S cable is used as support wire of telephone communication cable
3) It is also used as support wire of internet communication cable.
4) It is also used for fish fraps
5) It is also used for out-casing which performs redrawing after plating |
| |
 |
| KS D 7007 |
Galvanized Steel Wire Strand |
| JIS G 3537 |
Galvanized Steel Wire Strand |
| ASTM A 363 |
Zinc-Coated(Galvanized) Steel Overhead Ground Wire
Strand |
| ASTM A 475 |
Zinc-Coated Steel Wire Strand |
| ASTM A 640 |
Zinc-Coated Steel Strand |
| AS 1222 Part 1 |
Steel Conductors And Stays For Overhead Power
Transmission Purposes, Galvanized |
| BS 183 |
General Purpose Galvanized Steel Wire Strand |
| CSA G 12 |
Zinc-Coated Steel Wire |
|
| |
 |
Category
|
Galvanized steel strand
|
ACSR |
Pitch
|
Short.
filament
diameter×(35～45)
|
Short filament
diameter×(54～60)
|
| Formability
|
High
|
Low |
| Quality Feature
|
Not Fastidious than ACSR
(Uniformity not required) |
Fastidious than ACSR
(Uniformity required) |
|
| |
 |
| Grade
|
Grade 1
|
Grade 2
|
Grade 3 |

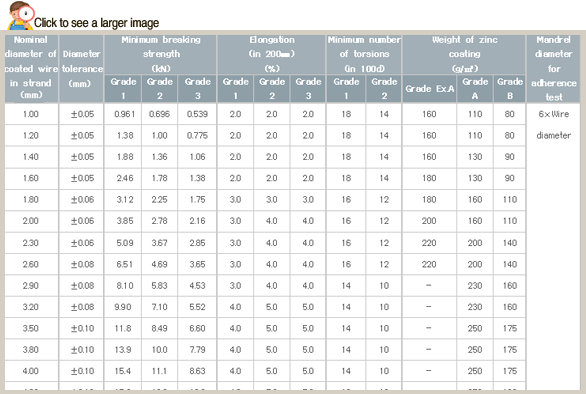

| Tensile Intensity of Filament
(N/㎟)
|
1,230
|
880
|
690 |
|
| |
 |
| By Item |
Length of Twist |

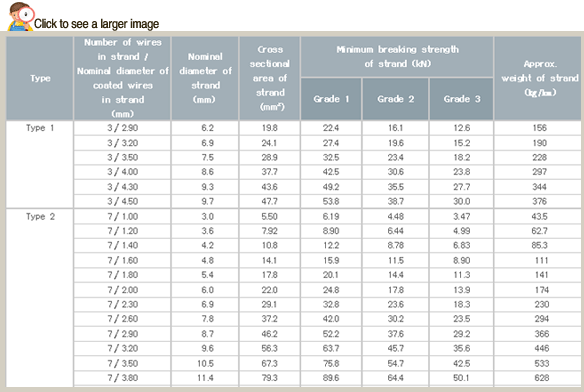

Type 1
|
Standard wire diameter × (25～35)
|
Type 2(a),(b)
|
Standard wire diameter × (35～45)
|
Type 3(a),(b)
|
Standard wire diameter × (60～80)
|
|
| |
 |
 |
| |
 |
 |
| |
 |
| Because the most ideal product that can satisfy customers can be manufactured if the purpose and working conditions of the product are clear, please inform us in detail by referring to the following items. |
|
1. Specifications: Mark class according to KS or JIS (Ex: KS D 7007 No.2, type 1)
2. Diameter and Structure: Mark rope diameter Structure (E: 7/2.00, 1.80㎜)
3. Usage: Mark the usage specifically
4. Tensile Intensity: Mark with KS specification (Type1,2,3)
5. Zinc Amount: Mark with KS specification (Special Grade A, Grade A, Grade B)
6. Package: Mark type of packaging
7. Weight: Mark required unit weight
8. Delivery: Mark desired delivery date
9. Other: Mark other special requirements |
| |
|
 |
|
