Because the rope is made by twisting many wire into screw shapes, it has the property (rotational property) of trying to rotate in the unlacing direction when the load is inflicted on the rope.
The rope which is made to have less of such rotational property is called non rotating rope. |
|
| |
 |
| The multilayer rope means the one that minimizes the rotational property of rope by having the twisting direction opposite by each layer as the strands are made by being twisted as 2 or 3 layers. |
|
 |
| |
 |
| |
1) The rope surface is even and has excellent flexibility.
2) The breaking load is higher than regular ropes
3) The equipment damage is less because of lower projection even when the wire
gets cut.
4) The non rotating property is excellent
|
|
| |
 |
 |
 |
| |

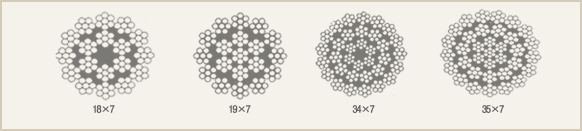

| Construction : 18 x 7
|
 |
| |
| Construction : 19 x 7
|
 |
| |
|
| Construction : 34 x 7
|
 |
| |
| Construction : 35 x 7
|
 |
| |
 |
| Single rope means one that has reduced rotational property compared to regular 6-ST ropes by decreasing the number of strands to 4. |
|
 |
| |
|
| |
1) The state of rope’s shape being destroyed doesn’t occur.
2) The non magnetic property is excellent compared to regular ropes.
*Mostly used for high head crane, 1 lumber sling crane, electric installation, leads and
deep sea observations.
|
|
| |
|
|
 |
| |

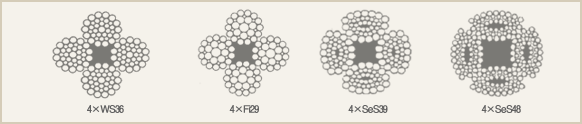

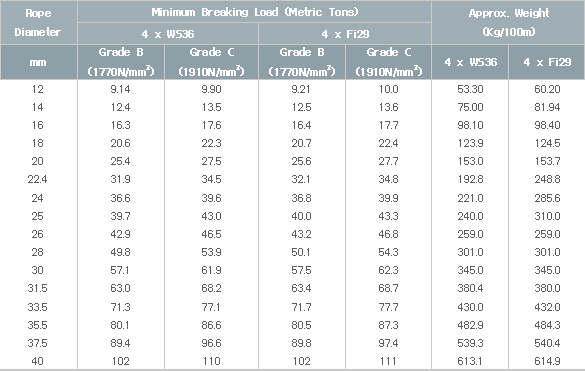

| Construction : 4 x WS36, 4 x Fi29
|
 |
| |

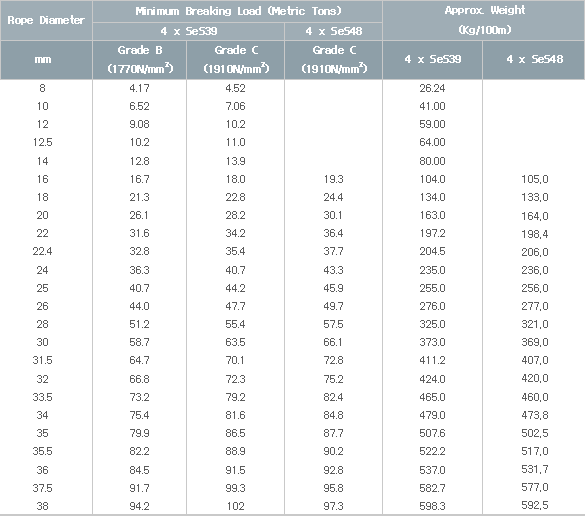

| Construction : 4 x SeS39, 4 x SeS48
|
 |
| |
|
|
|
