Construction
|

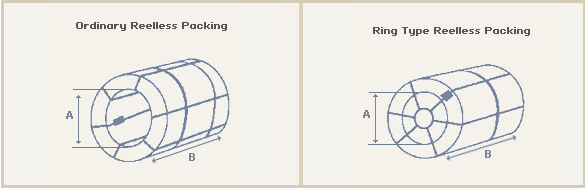

Packing type
|
Nominal diameter
(mm)
|
Inner diameter (mm)
A
|
Width (mm)
B
|
Weight WT
(kg)
|
Length L
(m)
|
7-wire
strand
|
Ordinary
Reelless |
9.3 |
800 |
750 |
3,000 |
7,407 |
| 9.5 |
" |
" |
" |
6,944 |
| 10.8 |
" |
" |
" |
5,495 |
| 11.1 |
" |
" |
" |
5,172 |
| 12.4 |
" |
" |
" |
4,115 |
| 12.7 |
" |
" |
" |
3,875 |
| 15.2 |
950 |
" |
" |
2,725 |
|
Ring Type
Reelless |
12.7 |
950 |
750 |
2,000 |
2,585 |
| 15.2 |
1,200 |
" |
" |
1,815 |
|
| In case of Ring Type reelless 15.2mm it can also be produced as 950mm.(Inner diameter) |
| |
 |
| Because the most ideal product that can satisfy customers can be manufactured if the purpose and working conditions of the product are clear, please inform us in detail by referring to the following items. |
|

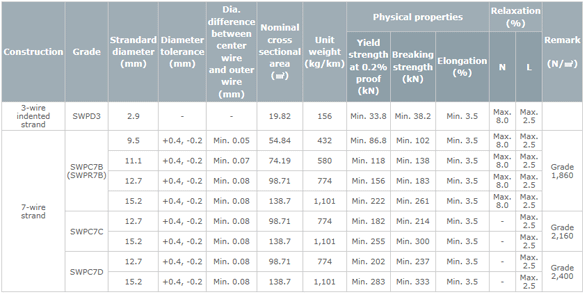

1. Specification: Mark class according to JIS or ASTM (EX : JIS G 3536 SWPR7B)
2. Diameter: Mark as mm if possible (Inch is also possible)
3. Package: Mark as coil packaging or reelless packaging
4. Weight: Mark required unit weight by packaging type
5. Delivery: Mark desired delivery date specifically
6. Other: Mark other special requirements |
| |
|
 |
|
|
|
